Gas and Dust Sensor
Showing 1–2 of 4 results
-
Gas and Dust Sensor, GP2Y1010AU0F Sharp Optical Dust Sensor, SENSOR AND MODULES

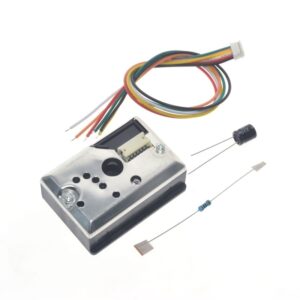

GP2Y1010AU0F Sharp Optical Dust Sensor
Gas and Dust Sensor, GP2Y1010AU0F Sharp Optical Dust Sensor, SENSOR AND MODULESGP2Y1010AU0F Sharp Optical Dust Sensor
- Power supply voltage: DC5 ± 2V
- Sensitivity: 0.5V / (0.1mg / m3)
- The minimum detection level of particles: 0.8 m
- Clean air voltage: 0.9V typ.
- Low consumption current (Icc: MAX. 20 mA)
- The presence of dust can be detected by the photometry of only one pulse
- Enable to distinguish smoke from house dust
Item Type: Dust Sensor Model No.: GP2Y1010AU0F Operating Current (mA): 20 Sensitivity (dBm): 0.5V/(0.1mg/m3) Operating Temperature (°C): -10 to 60 Dimensions (L x W x H) mm 46 x 34 x 18 Weight (g): 16 Shipping Weight 0.02 kg Shipping Dimensions 5 × 4 × 1 cm SKU: GI0262 -
Gas and Dust Sensor, GP2Y1010AU0F Sharp Optical Dust Sensor
GP2Y1010AUOF
- Power supply voltage: DC5 ± 2V
- Sensitivity: 0.5V / (0.1mg / m3)
- The minimum detection level of particles: 0.8 m
- Clean air voltage: 0.9V typ.
- Low consumption current (Icc: MAX. 20 mA)
- The presence of dust can be detected by the photometry of only one pulse
- Enable to distinguish smoke from house dust
SKU: n/a
