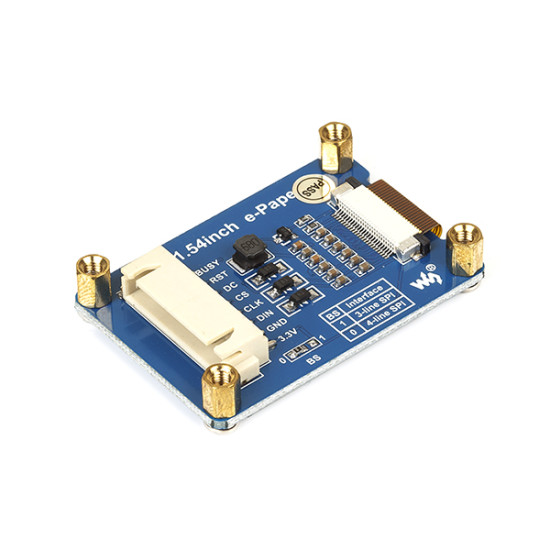

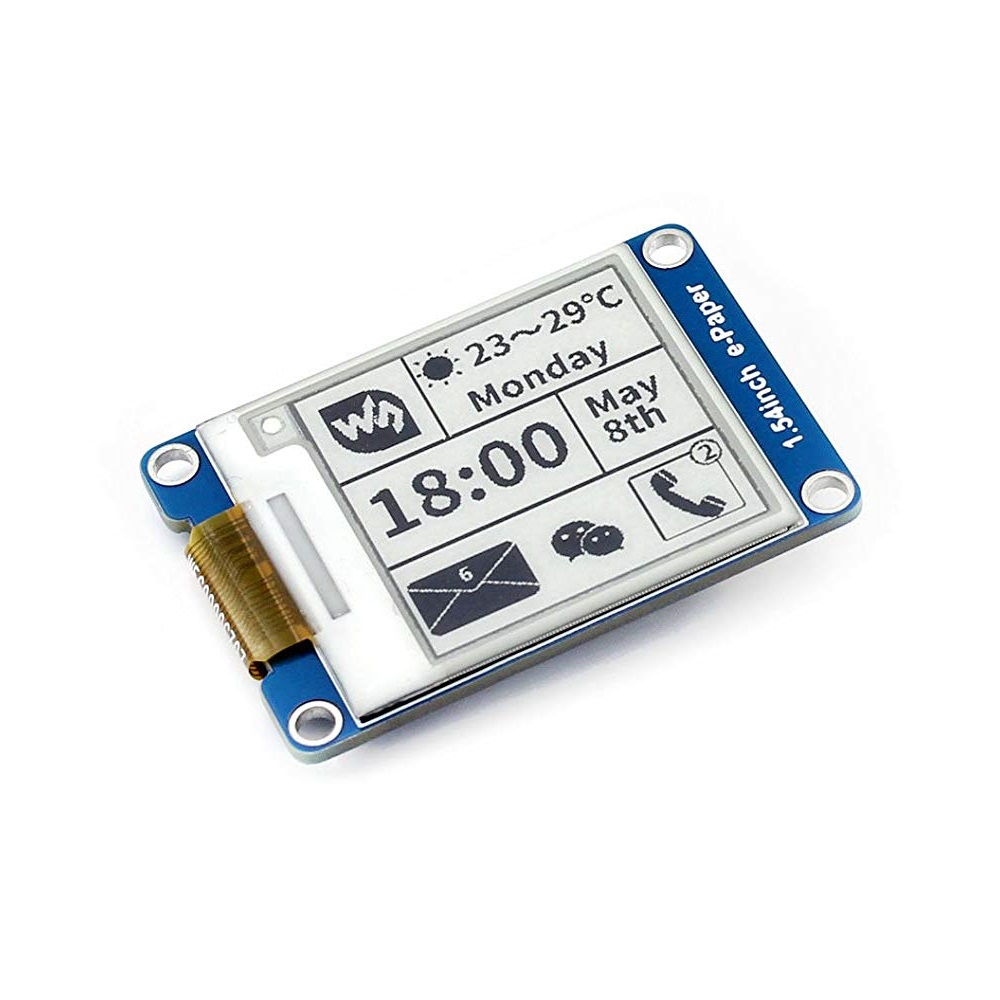

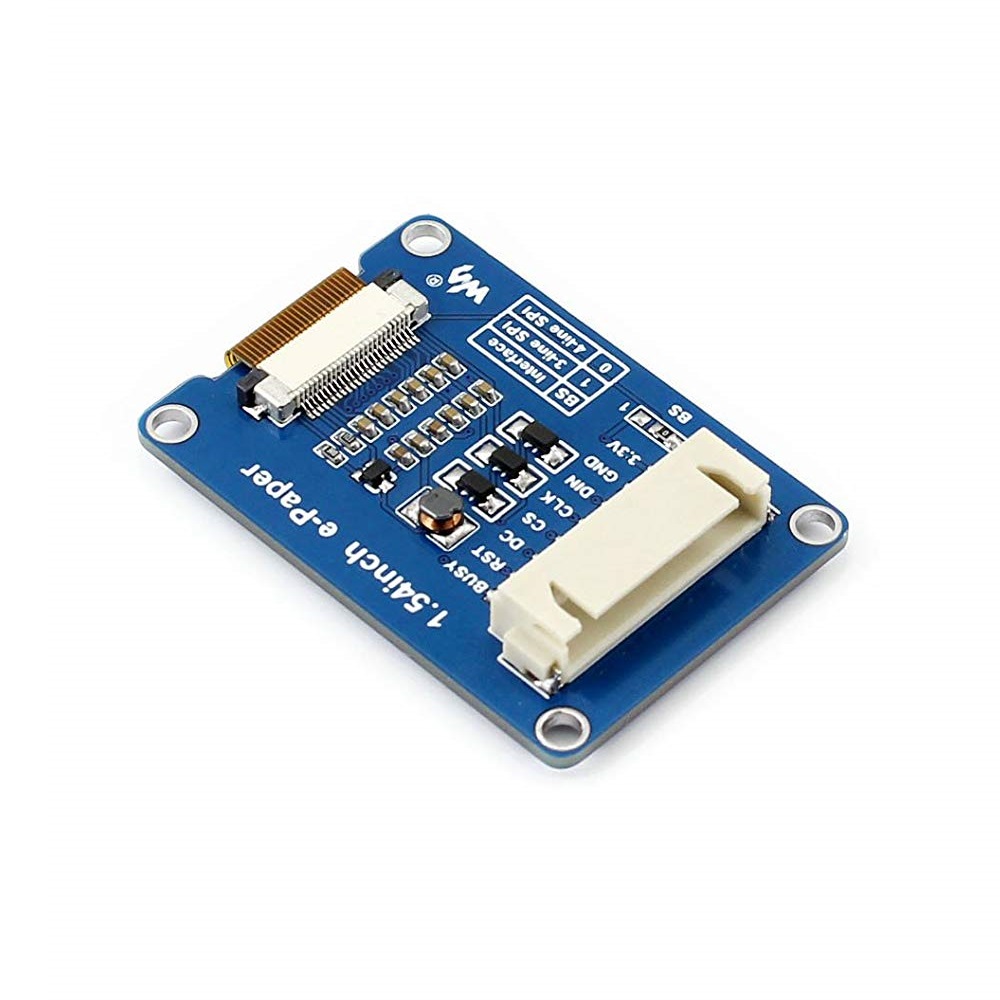

1.54inch E- Paper Display Module
Out of stock
- Display Resolution: 200 x 200
- Display Screen Color: Black and White
- No backlight so keeps displaying last content for a long time even when the power is down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
| Model Type: | Display Module |
|---|---|
| Display Size (Inch): | 1.54 |
| Display Resolution: | 200 × 200 |
| Operating Voltage (V): | 3.3 ~ 5 |
| Interface: | 3-wire SPI, 4-wire SPI |
| Display Color | Black and White |
| Grey level | 2 |
| Partial Refresh Time | 0.3s |
| Full Refresh Time (s) | 2 |
| Dot Pitch | 0.138 × 0.138 |
| Outline dimension (mm) | 48 × 33 |
| Refresh Power | 26.4mW(typ.) |
| Standby Power (mW) | <0.017 |
| View angle | >170° |
| Dimensions (L x W x H) mm | 48 x 34 x 10 |
| Weight (g): | 20 |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 8 × 7 × 4 cm |
Waveshare 1.54 inch e-Ink Paper Display Module with SPI Interface comes with 200×200 resolution and embedded controller module. It is communicating via SPI interface and it supports partial refresh. As these displays have no backlight panels and it doesn’t need a continuous power supply to display the (static data with periodic intervals) data on the screen, it has a great advantage of ultra-low power consumption. Also, it has a wide viewing angle, great viewing effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features:
- No backlight so keeps displaying last content for a long time even when the power is down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
- Wide viewing angle, great viewing effect under sunlight.
Interface:
| SYMBOL | DESCRIPTION |
|---|---|
| VCC | 3.3V/5V |
| GND | Ground |
| DIN | SPI MOSI pin |
| CLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output, high active |
Package Includes:
1 x Waveshare 1.54 inch e-Ink Paper Display Module with SPI Interface (Res: 200 x 200)
1 x Interfacing Cable
