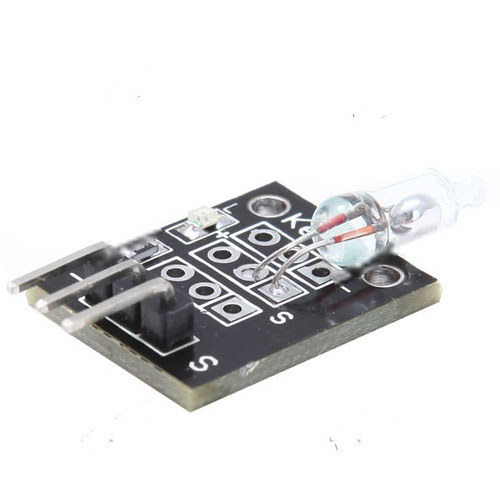

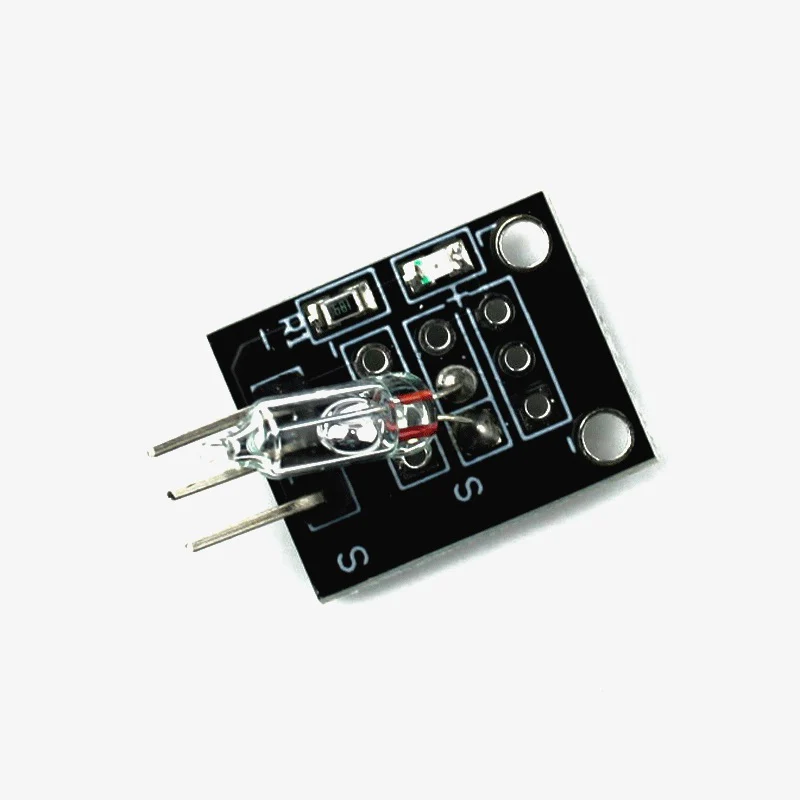

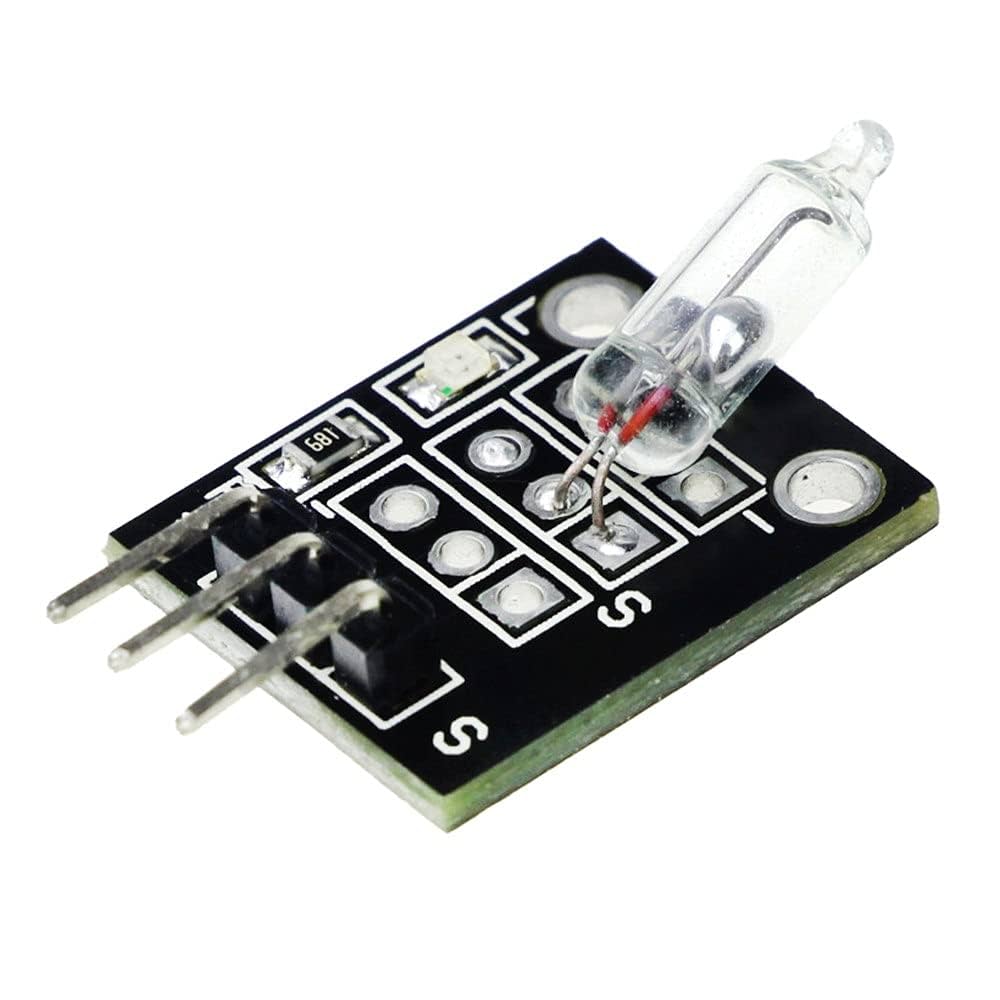

KY-017 mercury tilt switch module

Tilt sensors are used to measure the orientation from horizontal reference plane of any object. People use bubble method to identify orientation, string method and accelerometer to do that but it is one of the most important aspect of any RC plane or quadcopter flight to stop the orientation from going beyond a certain point from horizontal plane, also the same function for Robots and Autonomous vehicles. This KY017 Tilt Switch Sensor Module measures the orientation and if the orientation goes beyond a certain level it lights up an LED on the module and gives out a digital signal on the signal Pin which can be used to read by the Arduino or Raspberry Pi or any development boad you are using by taking input on any of the GPIO pins on offer. The mercury ball in the glass envelop will either open or close the circuit with different orientations. It is small in size, economic and very easy to interface with any of the microcontroller you are using.

Specifications

• Economic, Reliable and Small in size
• Operating voltage 3.2Vdc-5Vdc
• Output LED light Indicator
• 3 Pin sensor Module
• High Sensitivity

Package Contents

e1×ul Ky017 Mercury Tilt Switch Module
