sht30

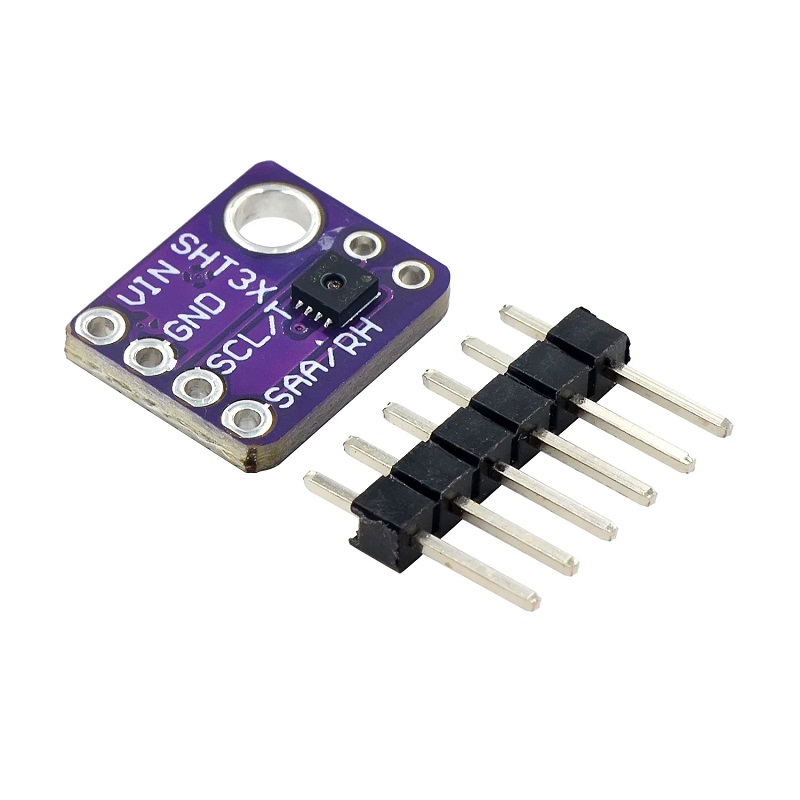

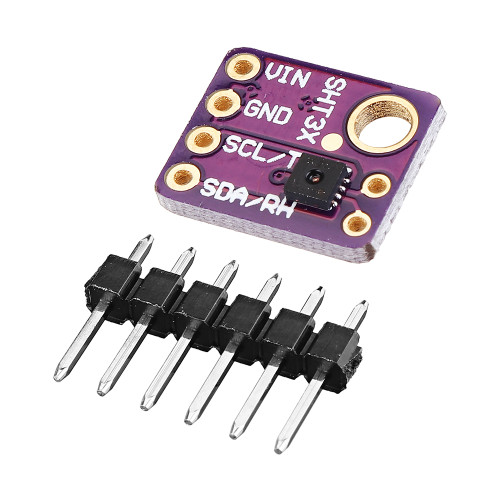

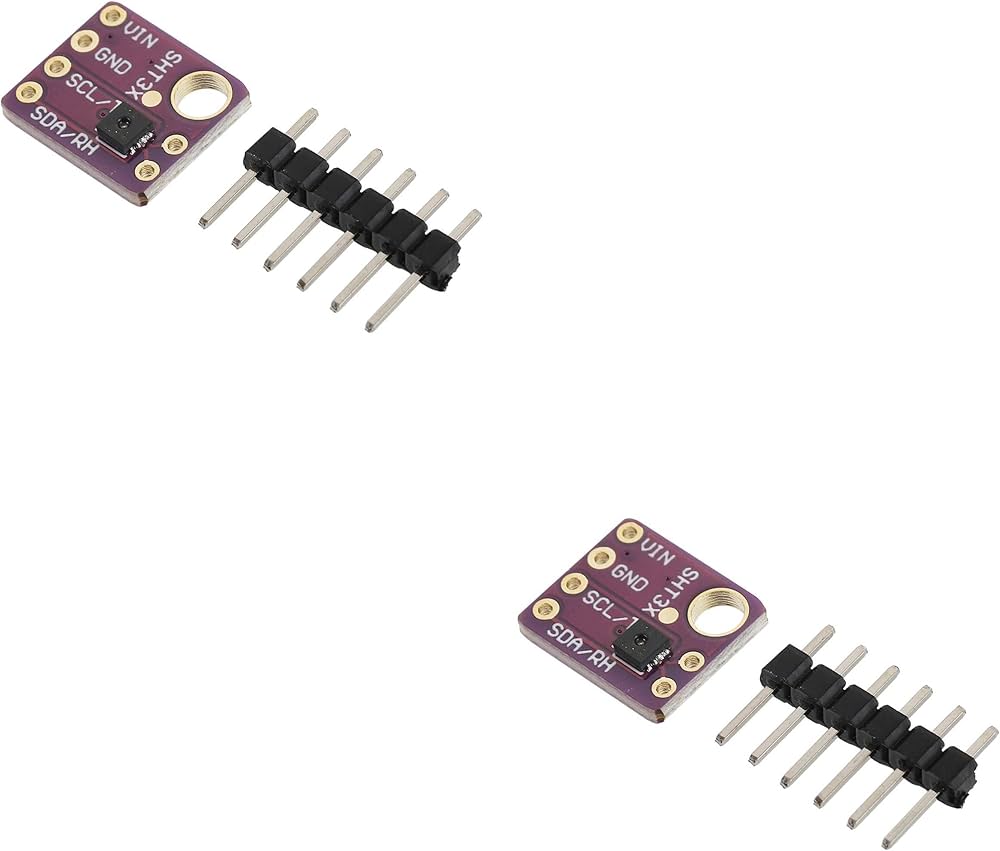

This is an Unwelded GY-SHT30-D Digital Temperature and Humidity Sensor. GY-SHT30-D module for the digital measurement of temperature and relative humidity that equips the known sensor SHT30. It also offers new features, such as improved signal processing and two distinct user-selectable I2C addresses. The CMOSens technology ensures excellent reliability and long-term stability. Each SHT3x is individually calibrated and the calibration coefficients are programmed into an OTP memory on the chip. The compact size and low power consumption make SHT30 the ultimate choice for even the most demanding.

Note: The actual product may vary in slight variation with the image shown depending upon quantity availability.

Note: GYVL53L0X printed on product working remains the same.

Features:

1. Digital output for temperature and humidity
2. High accuracy
3. Low power consumption
4. Small form factor
5. I2C communication interface
6. Wide operating voltage range
7. Calibration coefficients stored on-chip
8. Reliable and easy to use
9. Sensor model: SHT30
10. Humidity sensor resolution: 12-8 bit
11. Temperature sensor resolution: 14-12 bit
12. Read temperature accuracy: ± 0.3 ° C
13. Read humidity accuracy: ± 3%
14. I2C communication rate: 1MHz
15. Read humidity range: 0-100%, 1% accuracy
16. Read temperature range: -40 ~ + 125 ° C

Package Includes:

1 x Unwelded GY-SHT30-D Digital Temperature and Humidity Sensor
