The USB 2.0 to TTL RS485 Serial Converter can be used in industrial-grade applications and features an excellent speed anti-jamming capability and is very suitable for industrial control field, individual applications. With the help of RS485 interface, it can be used in a surveillance camera, video capture, fingerprint attendance machine, program-controlled switches and CNC machine.

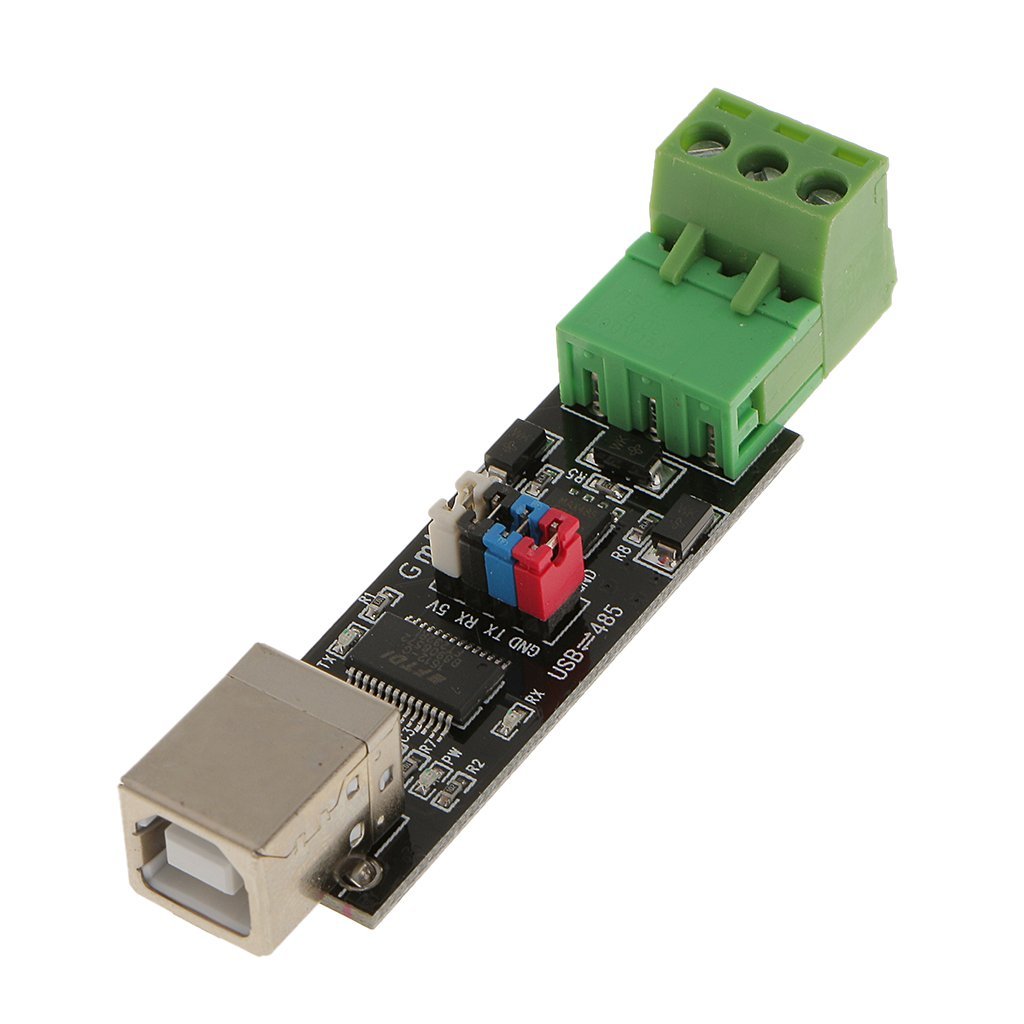

USB 2.0 to TTL RS485 Serial Converter Adapter FTDI Module (FT232FRL SN75176)
Standard: USB2.0 standard, backward compatible, in line with the standard RS485
Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
Baud:300-9216000bps, automatically detecting the serial signal data rate.
Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
Support Windows98/ME/2000/XP//Vista/10, Linux, Mac.y USB to serial TTL module, download STC SCM
The USB to RS485 TTL Serial Converter Adapter FT232 is USB2.0 standard, backward compatible, in line with the standard RS485. It has Direction control with use of automatic data flow control, auto distinguish and control data transfer direction with Baud rate of 300-9216000bps and automatically detecting the serial signal data rate.
It supports the multipoint, each converter allows the RS485 interface device to connect 32 and comes with TVS tube Interface Protection and also with USB self-recovery protection.
This USB to RS485 TTL Serial Converter provides two-way serial communications signal conversion between the RS485 to and from a personal computer USB port using virtual serial COM port. Self-powered from USB it uses FT232RL+75176 and can have up to 32 devices on the bus.

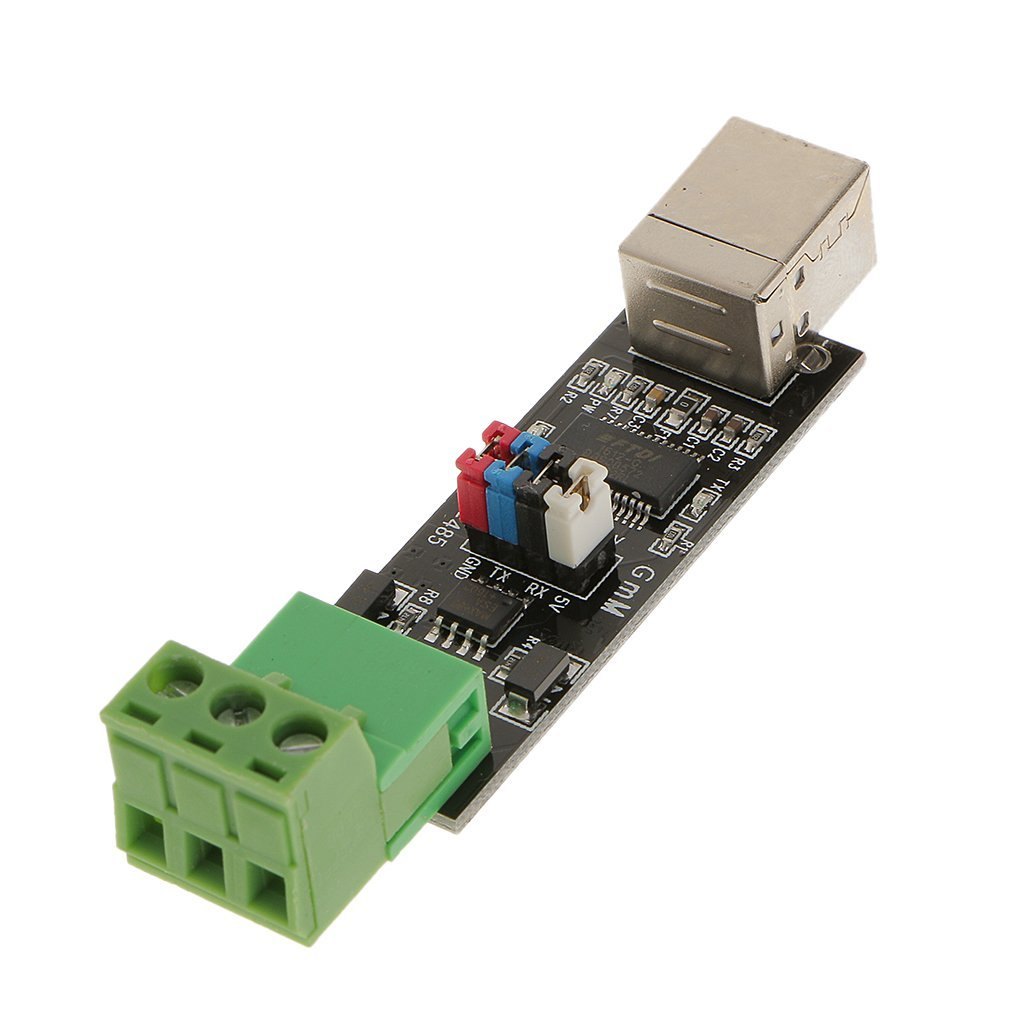

The 4 jumpers connect the USB interface to the RS485 interface. If the jumpers are removed, the USB interface may be used as a TTL Level Serial port.
Some of the Applications are
Surveillance Cameras
Video capture device
Fingerprint attendance machine
PBX
CNC machine
Features :
Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
Interface Protection: TVS tube protection, USB self-recovery protection
Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
Self-powered from USB.
It can be up to 32 devices on the bus.
USB 2.0 to TTL RS485 Serial Converter
The USB 2.0 to TTL RS485 Serial Converter can be used in industrial-grade applications and features an excellent speed anti-jamming capability and is very suitable for industrial control field, individual applications. With the help of RS485 interface, it can be used in a surveillance camera, video capture, fingerprint attendance machine, program-controlled switches and CNC machine.
